XT550-SS

$505.00
In stock
SKU
XT550-SS

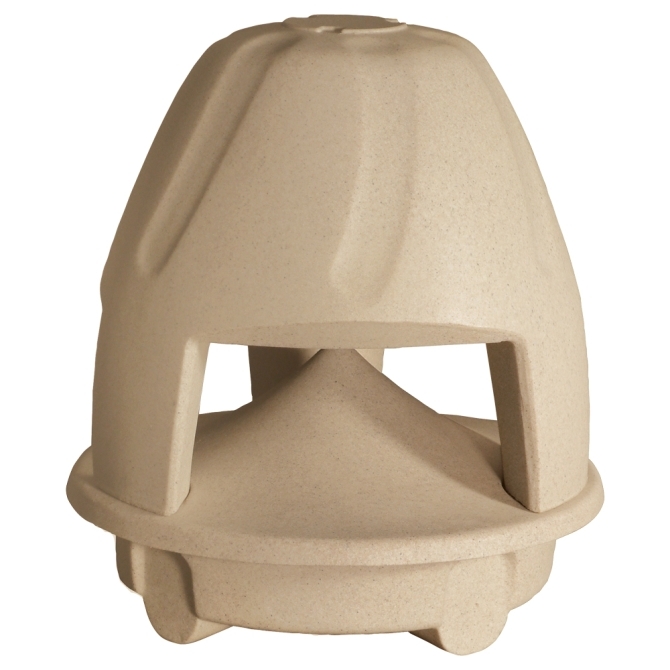

SoundTube 5.25" 2-way Outdoor Speaker System in Sandstone

SoundTube Outdoor XT550 Speaker System in Sandstone

The SoundTube XT550 is a premium 2-way outdoor loudspeaker solution for installations requiring high-performance sound in a durable speaker design. Not only is it UV resistant, scratch resiatant, chlorine resistant, and weather resistant with professional-grade components for long-lasting performance and durability, the XT550 is designed for full-range back-ground and foreground music as well as paging. The speakers sealed, in-ground enclosure design delivers true low end response (38 Hz, "“ 10 dB) and optimal off axis performance. The XT550 includes theft resistant mounting hardware and a weatherproof 5-position tap switch for 25/70.7/100 Volt applications with transformer bypass position.

Owner's Manual |  Mechanical Drawing |  A&E Specs |  Revit |  DXF |  DWG |  PDF Drawing | UL Certificate

About SoundTube
More Information
ColorSandstone
Manufacturer's Suggested Retail Price$505.00
UPC752830445789
ManufacturerSoundTube
Manufacturer's CategoryXT Extreme Weather Outdoor Series
Height15.51 in / 394 mm
Width/Diameter14.1 in / 358.1 mm
Carton Height17.5 in / 444.5 mm
Carton Length16.25 in / 412.75 mm
Carton Width16.25 in / 412.75 mm
CertificationsIP55, UL1480A
Included AccessoriesAnti-Theft Bracket, Weatherproof Strain Relief, Wire Nuts

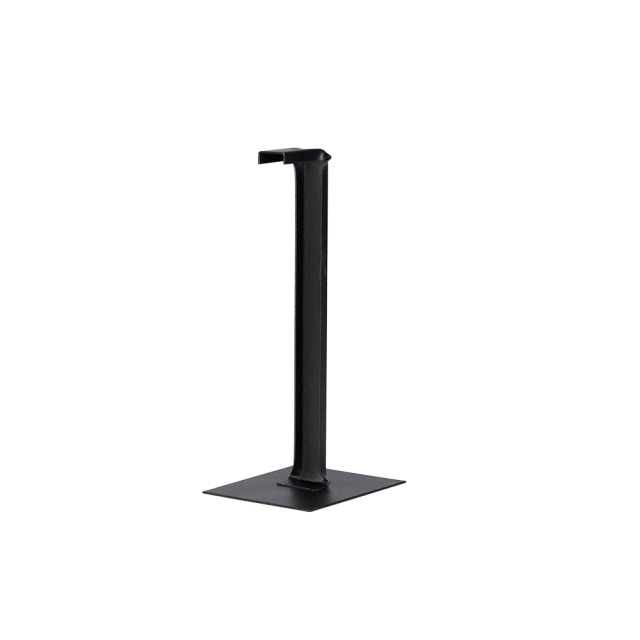

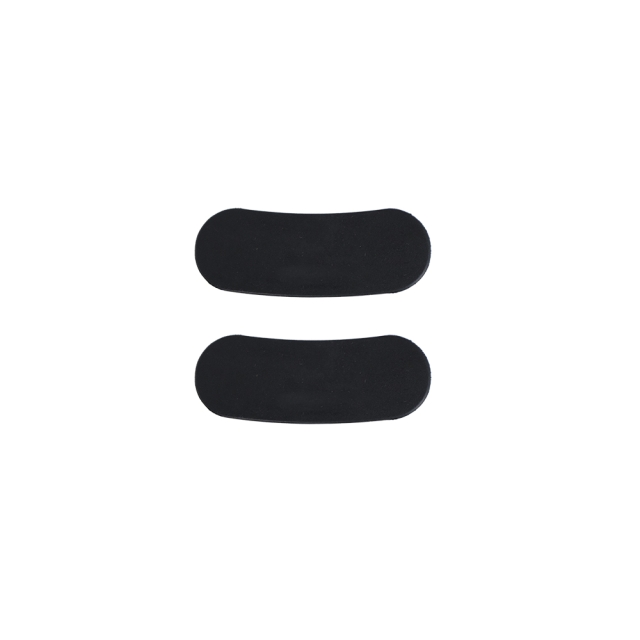

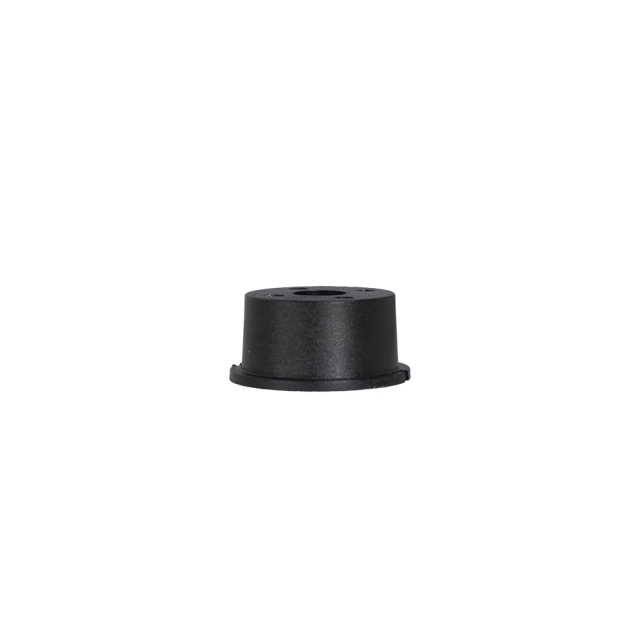

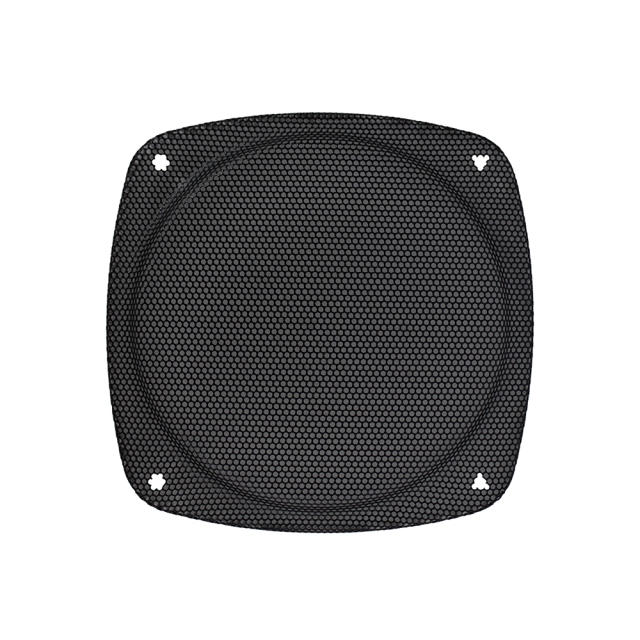

Optional AccessoriesAnti-Theft Bracket (ATD-XT)|Grille (GRL-XT5)|Tap Switch Cover (CVR-XT-TAPSW)|Port Plug (PP-XT550)
Source Inputs#18 AWG Wire Leads
Shipping Weight18.35 lbs / 8.32 kg
Crossover Frequency3.0 kHz
Frequency Response (± 10 dB)49 Hz - 22 kHz port open (62 Hz - 22 kHz port closed)
Frequency Response (± 3 dB)61 Hz - 9.5 kHz port open (101 Hz - 12 kHz port closed)
Grille PropertiesPainted, Steel
Low Pass Crossover6 dB per octave 1st order
Magnetically BoostedNo
Max. Continuous Power RMS60 Watts
Max. Program Power120 W
Minimum Impedance (Ω Ohms)4 Ω
Network Type: High Pass6 dB per octave 1st order
Nominal Impedance (Ω Ohms)4 Ω
Tweeter Driver1" Aluminum Dome
Woofer Driver5.25" Polypropylene
Sensitivity dB @ 1W/1M83 dB
Sensitivity dB @ 2.83V/1M86 dB
Transformer Options25 / 70.7 / 100 V, 4 Ohm direct
Transformer Taps (25V/70.0V/100V)4W/32W/32W
