SoundTube 5.25" Hanging Speaker in White with a BroadBeam® Tweeter
This item is currently backordered. ETA: TBD.
<h3>SoundTube RS500I Hanging Speaker in White</h3>
<p>The RS500i has a 5.25-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way, ported speaker with an open-ceiling enclosure design that delivers effective low-end response (61 Hz) and 105° off-axis performance (2 to 10 kHz, indepen-dently verified). The speaker uses patented ZeroReflection<sup>™</sup> enclosure technology for optimal sound reproduction and cabinet rigidity. SoundTube®'s proprietary BroadBeam<sup>®</sup> waveguide tweeter system delivers consistent high-performance audio coverage across the operating band-width. The RS500i speaker design incorporates a low-profile grille, proprietary motor-board and a six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position simplifies ordering and inventory tracking with transformer bypass position. Includes UL listed hanging hardware with cables and integrated SpeedClamp<sup>™</sup> self-locking wire grip for fast, easy and secure installation. Euro-block connector and terminal weather boot are included.</p>
<p><a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS+%26+HP+Series+Owners+Manual.pdf" target="_blank">Owner's Manual</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+Tech+Sheet.pdf" target="_blank">Tech Sheet</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+Drawing+Side.png" target="_blank" data-rel="fancybox">Mechanical Drawing</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+AE.doc" target="_blank">A&E Specs</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+GLL.zip" target="_blank">GLL</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+EASE+4.0.zip" target="_blank">EASE 4.0</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+EASE+3.0.zip" target="_blank">EASE 3.0</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+CF+1.zip" target="_blank">CLF 1</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+CF+2.zip" target="_blank">CLF 2</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS+Series+Revit.rfa" target="_blank">Revit</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+DXF.dxf" target="_blank">DXF</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+DWG.dwg" target="_blank">DWG</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RS500i+PDF+Drawing.pdf" target="_blank">PDF Drawing</a> |
<a href="https://mseaudio-soundtube-downloads.s3.us-west-2.amazonaws.com/SoundTube+Tap+Switch_iSeries.pdf" target="_blank">Tap Switch Instructions</a> |
<a href="https://mseaudio-soundtube-downloads.s3-us-west-2.amazonaws.com/RSi%2C+CMi%2C+SMi%2C+HP890i+UL+Certification.pdf" target="_blank">UL Certificate</a></p>
<a href="https://rockustics.mseaudio.com/SoundTube" class="btn btn-default" style="background-color:#40B3CD;color:#fff;font-family:'helvetica';font-size:16px;letter-spacing:0.05em;font-weight:400;">About SoundTube</a>
Color | White |
---|---|
UPC | 644216202201 |
Manufacturer | SoundTube |
Manufacturer's Category | RSi Original Pendant |
Height | 11.4 in / 289.6 mm |
Width/Diameter | 8.36 in / 212.3 mm |
Shipping Weight | 23 lbs / 10.43 kg |
Carton Height | 13.5 in / 342.9 mm |
Carton Length | 22.25 in / 565.15 mm |
Carton Width | 12.25 in / 311.15 mm |
Certifications | CE, MIL Spec, RoHS, UL1480A, UL2239 |
Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
Enclosure Volume | 349.6 cu in / 5728.92 cu cm |
Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |

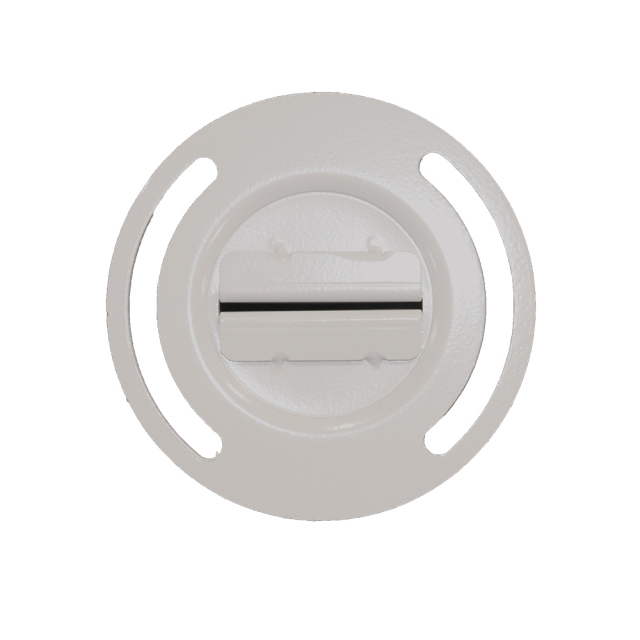

Optional Accessories | White Grille (GRL-RS500-WH)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|White Mounting Bracket (AC-RS-SM5-WH)|Connector (EUROBLOCK)|White Weatherboot (WEATHERBOOT-L-WH)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|White Split Loom Tubing (AC-SLT-10-WH)|Snap Link (AC-SL1) |
Source Inputs | 4 Pin 5.08mm Euroblock |
TAA Compliant (Trade America) | No |
BAA Compliant (Made in USA) | No |
Crossover Frequency | 3.0 kHz |
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.6 and 9.8 |
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.6dB and 9.9dB |
Frequency Response (± 10 dB) | 60 Hz - 22 kHz |
Frequency Response (± 3 dB) | 86 Hz - 22 kHz |
Grille Properties | Powder-Coated, Steel |
Low Frequency Voice Coil | 1 in / 25.4 mm |
Low Pass Crossover | 12 dB per octave 2nd order |
Max. Continuous Power RMS | 75W |
Max. Program Power | 150 W |
Minimum Impedance (Ω Ohms) | 4 Ω |
Mounting Depth | 10.48 in / 266.2 mm |
Network Type: High Pass | 12 dB per octave 2nd order |
Nominal Impedance (Ω Ohms) | 8 Ω |
Tweeter Driver | 1" Convex Aluminum w/ BroadBeam® Waveguide |
Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
Sensitivity dB @ 1W/1M | 83 dB |
Sensitivity dB @ 2.83V/1M | 86 dB |
Tap Selector | Rotary Switch |
Transformer Options | 25 / 70.7 / 100 V, 4 Ohm direct |
Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/33W/33W |
