SoundTube 8" In Ceiling Speaker in White with a BroadBeam® Tweeter

SoundTube CM800i In Ceiling Speaker in Black

Patented BroadBeam Ring waveguide technology delivers a consistent dispersion pattern for maximum coverage area per speaker. One 8.0 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. An average sensitivity of 90 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask.

Owner's Manual | Tech Sheet | Side Drawing | Top Drawing | Minimum/Maximum Ceiling | GLL | EASE 4.0 | EASE 3.0 | CLF1 | CLF2 | A&E Specs | Revit | DXF | DWG |  PDF Drawing |  Tap Switch Instructions |  UL Certificate

About SoundTube
More Information
ColorWhite
UPC752830448988
ManufacturerSoundTube
Manufacturer's CategoryCMi In-Ceiling
Shipping Weight40.05 lbs / 18.17 kg
Carton Height19 in / 482.6 mm
Carton Length32 in / 812.8 mm
Carton Width14.25 in / 361.95 mm
CertificationsCE, RoHS, UL1480A, UL2043
Enclosure PropertiesABS Glass Fiber Reinforced, Injection Molded, Ported
Enclosure Volume513.8 cu in / 8419.67 cu cm
Included AccessoriesConduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge

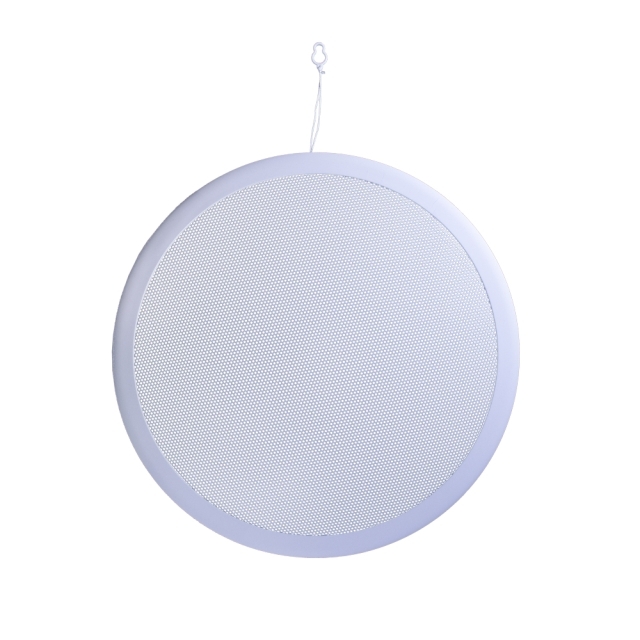

Optional AccessoriesWhite Metal Grille (GRL-CM6/8-WH-1)|White Weather-Guard Grille (GRL-CM6/8-WG-WH)|White Flangeless Grill (GRL-CM6/8-FLG-WH)|Tile Bridge (AC-CM8-TB)|Pre-Construction Bracket (AC-CM8-PCB)|Junction Box (AC-CM-JBOX)
Source Inputs4 Pin 5.08mm Euroblock
TAA Compliant (Trade America)No
BAA Compliant (Made in USA)No
Backcan Diameter11.68 in / 296.7 mm
Backcan Height7.94 in / 201.7 mm
Coverage Angle (±6dB @ 2kHz) 110°
Crossover Frequency3.0 kHz
Cutout Width/Diameter12.75 in / 323.9 mm
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)3.8 and 4
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)6.0dB and 4.0dB
Frequency Response (± 10 dB)71 Hz - 22 kHz
Frequency Response (± 3 dB)97 Hz - 22 kHz
Grille PropertiesStandard-Flange, Magnetic, Powder-Coated, White, Paintable, Steel
Low Frequency Voice Coil1.2 in / 30.4 mm
Low Pass Crossover12 dB per octave 2nd order
Max. Ceiling Thickness1.91 in / 48.5 mm
Max. Continuous Power RMS125W
Max. Program Power250 W
Minimum Impedance (Ω Ohms)5.3 Ω
Minimum Ceiling Thickness0.25 in / 6.4 mm
Network Type: High Pass12 dB per octave 2nd order
Nominal Impedance (Ω Ohms)8 Ω
Tweeter Driver1" Convex Titanium w/ BroadBeam® Waveguide
Woofer Driver8" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M90 dB
Sensitivity dB @ 2.83V/1M90 dB
Tap SelectorRotary Switch
Transformer Options25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V)9W/66W/66W
Visible Diameter14.76 in / 374.9 mm
Visible Height1.08 in / 27.4 mm
